Price: $259.99
(as of Dec 21, 2021 00:30:23 UTC – Details)

Product Description

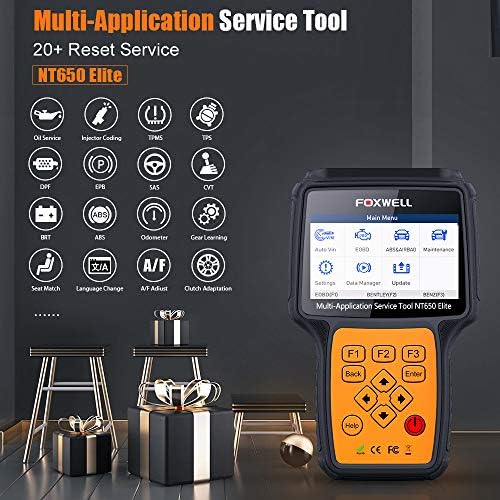

FOXWELL NT650 Elite Special Function Maintenance Scanner— The Best Diagnostic Tool That Everything You Need!

The Upgraded Version of FOXWELL NT650—–FOXWELL NT650 Elite

Basic Functions:

1. Read/Clear engine ABS and airbag trouble codes.

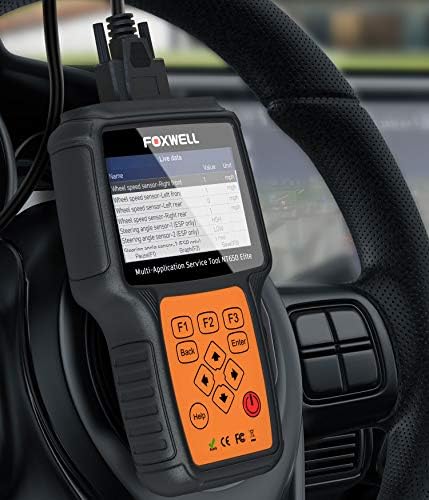

2. Show Live Data in test and merge graph.

Special Function:

1. ABS Reset: The auto bleed procedure is used to cycle the system solenoid valves and run the pump in order to purge the air from the secondary circuits.

2. SRS Reset: Your airbag crash data module will be restored back to its factory condition after accidents.

3. SAS Reset: Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

4. EPB Reset: It is important in the maintenance of electronic braking system’s safety and efficiency when replace brake pad or motor.

5. DPF Reset: Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

6. Oil Service Light Reset: Allows you to perform reset maintenance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.

7. TPMS Reset: Makes toms sensor in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and activate toms sensors.

8. TBA/TPS Reset: It is primarily used to monitor the throttle position within an inner combustion engine.

9. CVT Transmission Function: On these CVT transmissions, the timing of the release and application of elements is controlled by the transmission control module.

10. Fuel injector: Reset and match the date after injector is replaced.

11. Battery Registeration: Register the new battery with the vehicle ECU after changing battery.

Wide Vehicle Coverage

NT650 Elite automobile code reader will work on standard OBD2 / EOBD / JOBD & CAN protocol cars, mini vans, light duty trucks, suvs sold in the worldwide.

Moreover, it will be compatible with up to 2016/2017/2018/2019 year vehicles.

Latest Technology

Upgraded the processor 9X35 and the running memory to 1GBit which make the diagnostic scanner run faster.

The processor is upgraded from 9G10 to 9X35. The running memory is upgraded from 256MBit to 1GBit. The storage card is upgraded from 2GB to 8GB.

ABS & SRS Diagnostic

ABS Test – tests ABS motors, solenoids, solenoid enable relays, EMBs, and more.

ABS Version Test – displays the name of the brake system and the ABS controller version number, software ID, and sequence value.

Actuator Test – tests AYC valves, inlet valves, outlet valves, pump motors, and TRACS valves.

Auto Bleed Test– removes air from the internal brake fluid chambers after servicing the brakes.

Oil Light Reset

Oil Light Reset menu allows you to reset the service lamps on the instrument cluster. The Service Indicator System is designed to alert the driver when the vehicle is due for a service.

Oil service reset methods are determined by the vehicle being tested.

Steering Angle Sensor Calibration

SAS Calibration menu let you perform calibration of the Steering Angle Sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM. On successful calibration of the sensor, its fault memory is automatically cleared.

Battery Replacement

Lets you to n to validate new battery, clear faults from the dashboard and display current battery details of the vehicle such as Audi, BMW, Citroen, Peugeot, Seat, Skoda, Volvo, VW and Ford.

Electronic Parking Brake

Allows you to perform the service and maintenance of brake systems, including deactivation and activation of the brake control system, bleeding brake fluid, opening and closing brake pads, and setting brakes after disc or pad replacement, on multiple brands of vehicles where electronic brake systems are fitted.

Fuel Injector

After the ECU or injector is replaced, injector actual code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.

Throttle Body Alignment

Vehicle’s throttle position system sensor connected to the butterfly spindle and is primarily used to monitor the throttle position within an inner combustion engine. Due to its location, the throttle position sensor is able to effectively observe where the throttle butterfly valve is positioned.

Vehicle Identification

● Automatic VIN reading.

● Manual VIN entry.

● Manual vehicle selection.

Lifetime Free Upgrade

1. Install the application to your computer, register and login your user account.

2. Press the “update” on the screen while the device is being recogized.

3. The serial number will be readed automatically, choose the softeware and complete to install or update.

Deserve to Own

● Hand-held.

● Clearly arranged keypad.

● Friendly menu-driven operation,shortcuts.

● Rubberized sleeve, more high grade and durable

● A hollow blow molding tool box.

【Muilt-Application Diagnostic Tool】FOXWELL NT650 Elite automobile code reader is a cost-effective solution for the service and maintenance of your vehicle. It does not only diagnose the engine abs airbag malfunction, but also do abs bleeding, steering sensor inspection, battery registration, oil EPB light reset, SAS calibration, DPF regeneration, TPMS, TPS/TBA, CVT, fuel injector.
【Latest Technology】Upgraded the processor to 9X35 and the running memory to 1GBit which make the diagnostic scanner run faster. Auto VIN technology could automatically identify the vehicle’s make, model and year information. Wide vehicle coverage make this automotive scanner work on the up to 2017/2018/2019 year cars, SUVs, mini-vans, light-duty trucks(12V only).
【Global OBDII/ EOBD Scan】NT650 Elite odb2 diagnostics scanner provides comprehensive OBDII diagnostics for global OBDII/EOBD vehicles, reads and clear codes, turns off MILs, requests and records live sensor data, do O2 Sensor and EVAP Test (Mode 8), advanced On-board Monitoring (Mode 6). Powerful graphing capability gives you the “real picture” of what’s going on in the vehicle, which allows you focus on any suspicious or symptom-specific data parameters.
【Excellent Value for Money】Clearly arranged keypad, menu-driven operation, shortcuts and easy-to-read 4.3” color display make the scanner extremely easy to use. In addition, FOXWELL NT650 Elite constructed to resist impact and damage in the tough workshop environment. A hollow blow molding tool box, rubberized sleeve, the secure fit extra corner padding and screen protector ensure your diagnostic tool will be around for a long time.
【The Best Choice You Can Trust】Knowing what is exactly wrong with your car will surely cut many unnecessary costs, It is a great choice if you are looking for a obdii scanner well-built and easy-use. NT650 Elite comprehensive diagnostic tool is original from FOXWELL, it’s well worth a try.
