Price: $16.30
(as of Nov 07, 2021 08:30:12 UTC – Details)

Product Description

Thanks for choosing Allsun digital Paint Thickness tester,The main products from Allsun contain Multi-meter, Digital Multimeters, Digital Clamp meter, Metal Detectors, Distance Measures, Infrared Thermometer, Voltage, Battery Tester, Digital Scale and multifunction sensor all of which have an advantage in domestic and overseas markets.

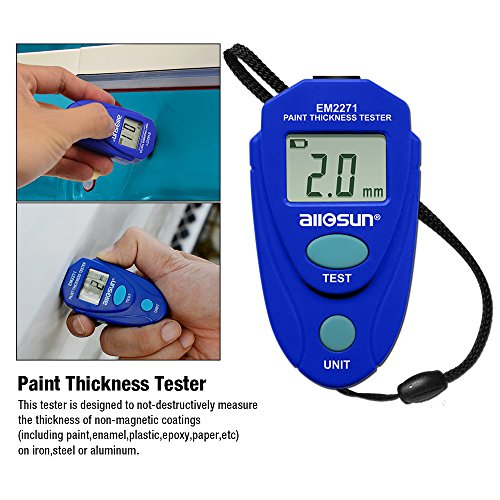

This tester is designed to not-destructively measure the thickness of non-magnetic coatings(including paint,enamel,plastic,epoxy,etc)on iron,steel or aluminum.

If you are now looking for a digital Paint Thickness tester, exactly, just choose it!

SPECIFICATION:

Measuring Range: 0.0mm to 2.0mm / 0mil to 80mil Accuracy : 2%rdg ±0.1mm, or 2%rdg ±4mil Note: Accuracy at the operating temperature of 23℃±℃ and relative humidity of not more than 75%.
Resolution : 0.1mm/1mil

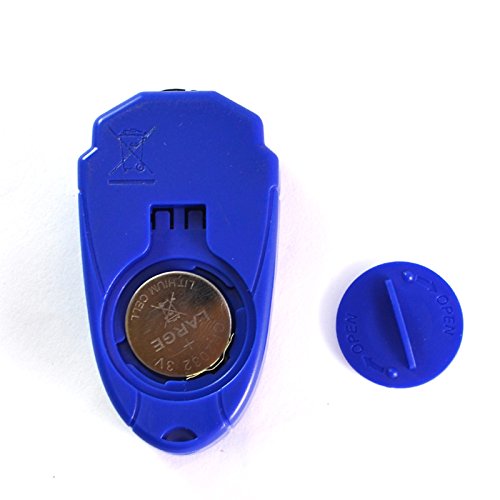

Power Supply : 1 x 3V button cell, CR2032 or equivalent ( Move the battery’s insulating piece away before using )
Operating Environment:Temperature: 0-40℃
Relative Humidity: < 80%
Temperature Coefficent:0.05x(2%rdg±0.01mm,or 2%rdg±4mil)/℃ (< 18℃ or >28℃)
Storage Environment:Temperature:-10℃ to 50℃
Relative Humidity:< 80%

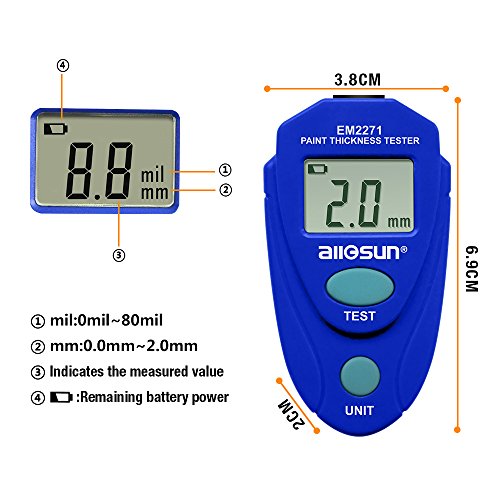

Size:6.9 x 3.8 x 2cm
Weight : About 23g (including button cell)

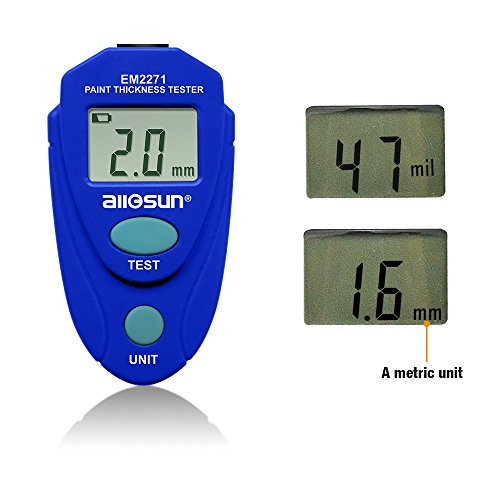

The Screen Display

If the display shows”–“,it means that the tester does not detect any iron,steel or aluminum substrate.If the display shows”OL”,it means that the coating thickness exceeds the tester’s measuring range.If the display shows”- 0″,it means that the probe has wear or the substrate under the coatings may be other kind of metal other than iron,steel or aluminum.

Please note: Accuracy is 2%rdg±0.1mm, or 2%rdg±4mil (generally measurement) in 23 ℃±5℃，and humidity ≤75%Designed to non-destructively measure the thickness of non-magnetic coatings on iron,steel or aluminum.Power supply by 1 piece 3V button cell, CR2032 or equivalent.( Move the battery’s insulating piece away before using )

How To Use

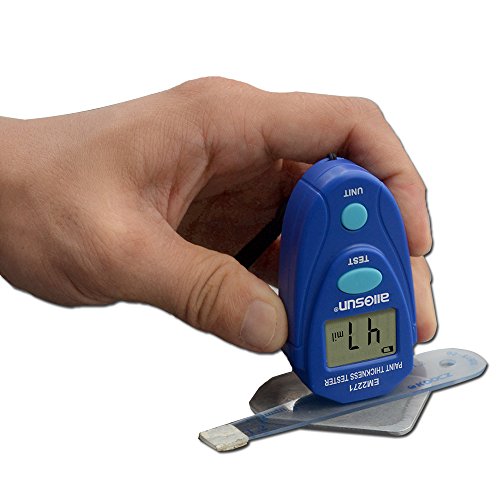

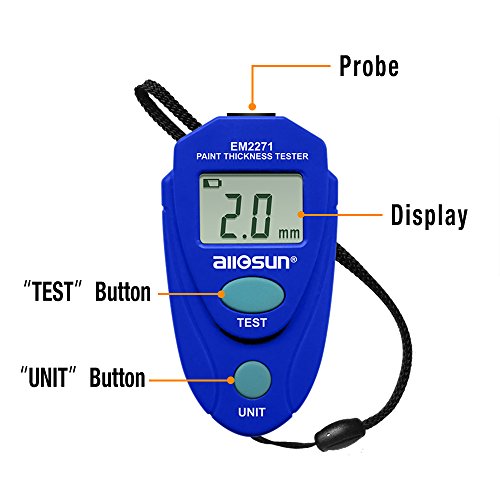

Hold the tester and make sure that it is as least 20cm away from the object to be tested andother objects.Then press the “TEST” button to turn on the tester.”–“appear on the displayand flashed, meanwhile the unit “mm”appear.Press the “UNIT”button to select desired unit – mm or mil.Place the tester’s probe perpendicularly on the surface to be tested,the display will show the coating thickness.When you make measurement,the reading will remain on the display if you move qucikly the tester away from the surface under test.and you can press the “TEST”button to delete this reading,the display will show”–“If you do not press any button and the tester does not detect the presence of steel,iron or aluminum for about 30 seconds, the tester will turn off automatically.If you want to turn off the tester manually,press and hold down the “TEST” button for more than about 1 second.

Is Discontinued By Manufacturer‏:‎No
Product Dimensions‏:‎2.72 x 1.5 x 0.79 inches; 1.76 Ounces
Batteries‏:‎1 CR2 batteries required. (included)
Date First Available‏:‎January 8, 2018
Manufacturer‏:‎Zhangzhou Haimao Dianzi Keji Co., LTD
ASIN‏:‎B078WPJHJX

▲〖CHECK VIDEO QUICKLY〗Please Check out our VIDEO on the left side and take a quick tour of Allsun paint thickness tester EM2271 multi functions Thickness Meter tester.
▲〖EASY OF USE〗Automatic Calibration Data Hold Mini Size with LCD Display, It can measure the thickness of many nonmetallic substance(Measuring range is 0.0 to 2.0mm or 0 to 80 mil).The mainly function is measuring car paint thickness.
▲〖MULTI FUNCTIONAL〗Allsun digital coating thickness gauge accurately measures automotive paint thickness.Designed to non-destructively measure the thickness of non-magnetic coatings on iron,steel or aluminum.
▲ 〖ABOUT STARTS UP〗 Power supply by 1 piece 3V button cell, CR2032 or equivalent.( Move the battery’s insulating piece away before using ),Two units available:mm/mil.
▲ 〖MINI THICKNESS METER〗The paint thickness meter is use to measure thickness and check for body filler, is not need calibration, the packaging list is not includes Calibration plates.
